144” Mini Family Van Layout

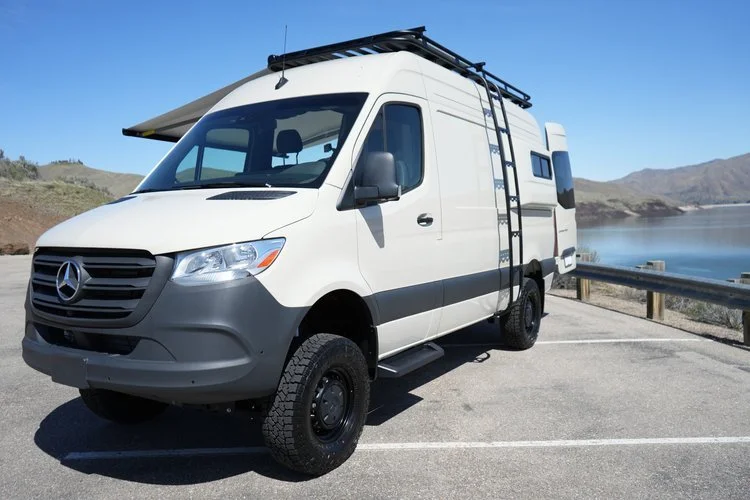

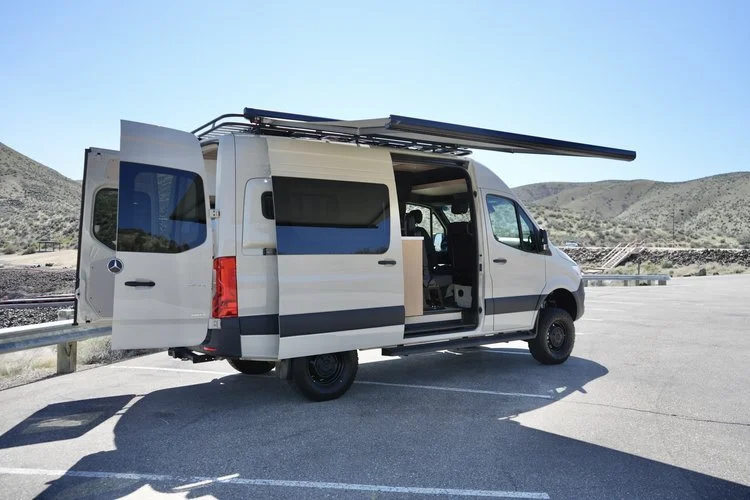

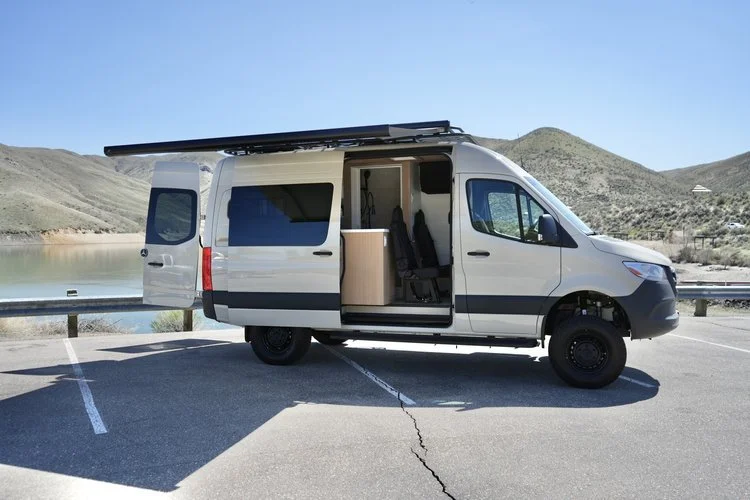

We’re excited to share our latest project, a 2024 AWD Sprinter Van built for our client in California. This client came to us wanting to fit our Family Van layout into a 144” Sprinter, which required a few thoughtful modifications to make everything work comfortably.

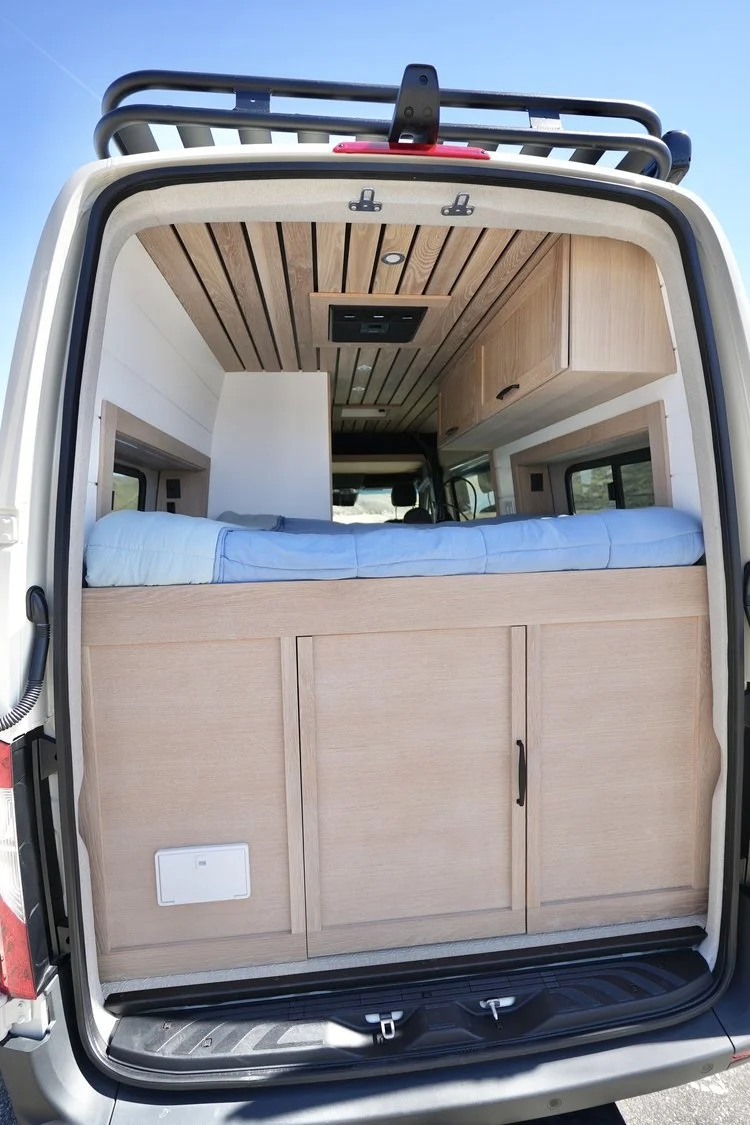

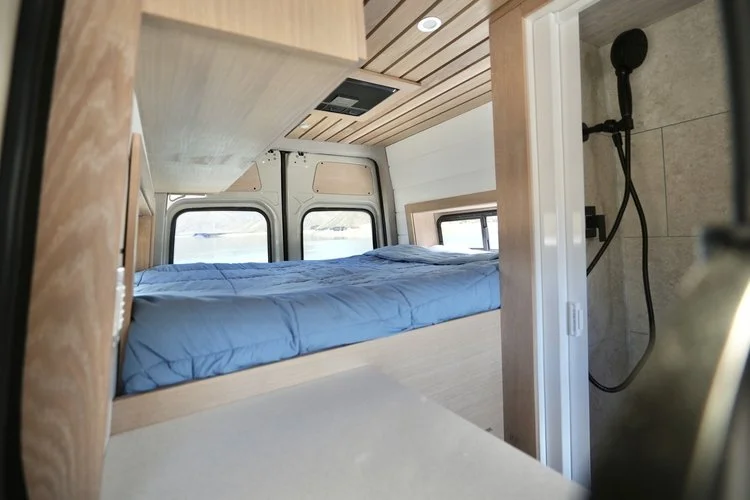

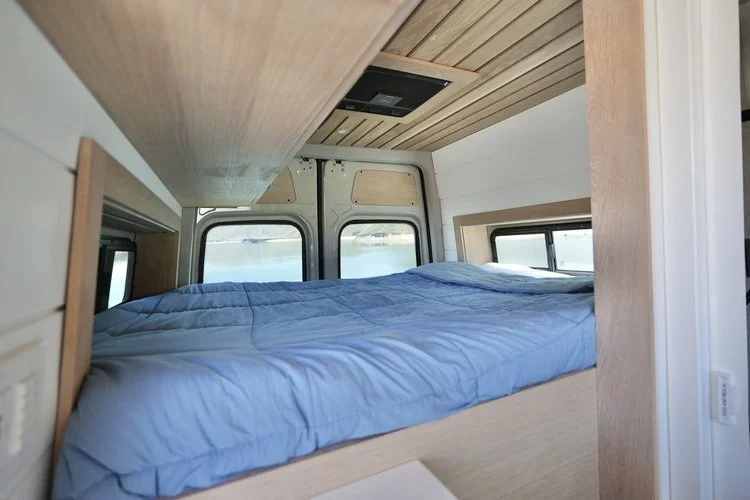

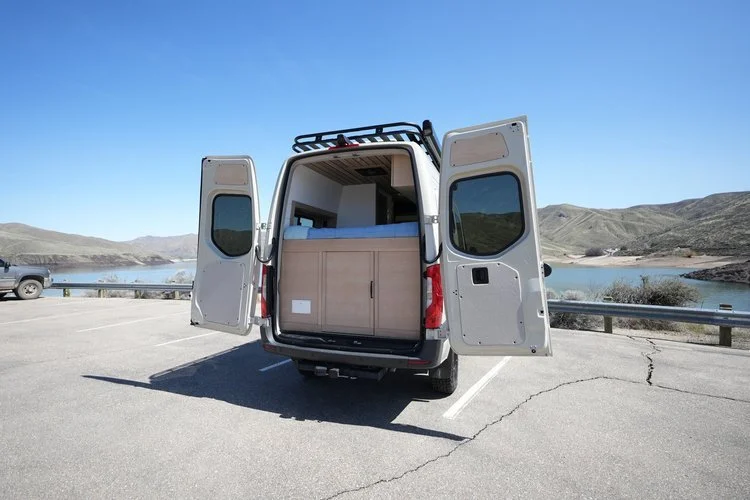

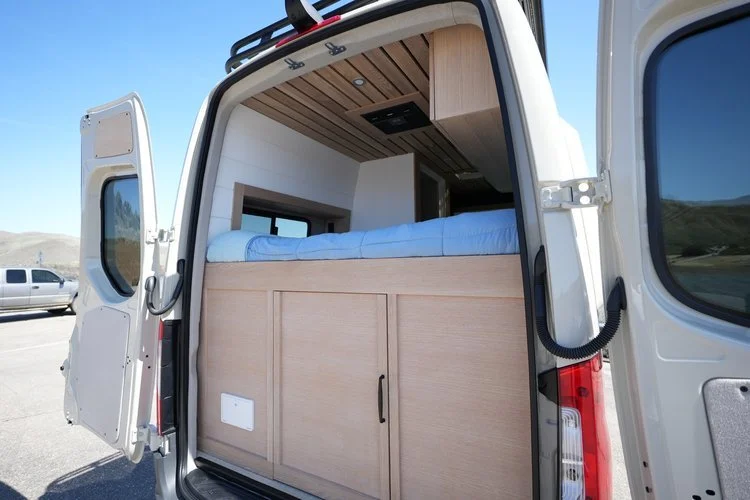

To achieve this, we added rear flares so the bed could be turned to sleep side to side, allowing us to shorten the layout from front to back without sacrificing sleeping space.

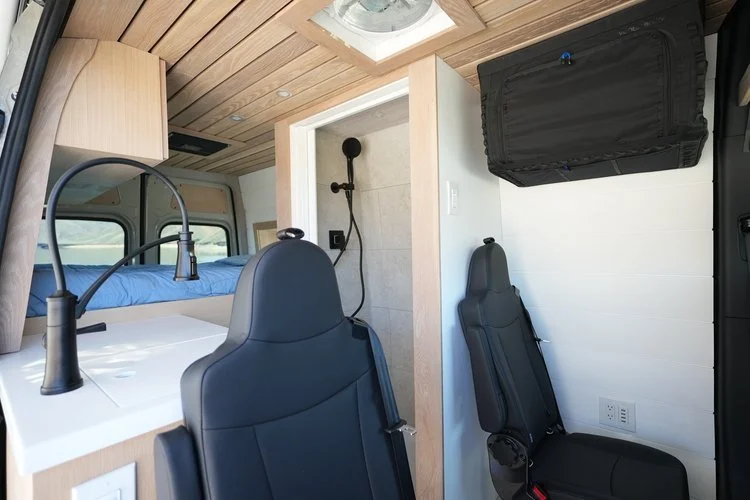

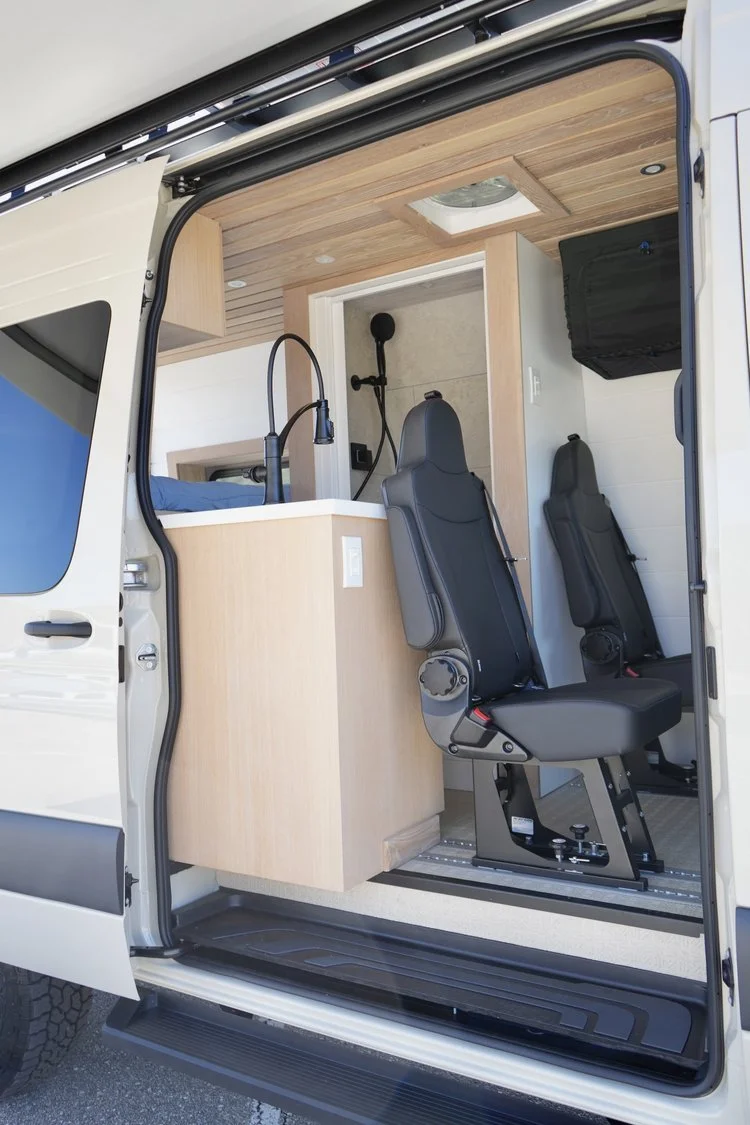

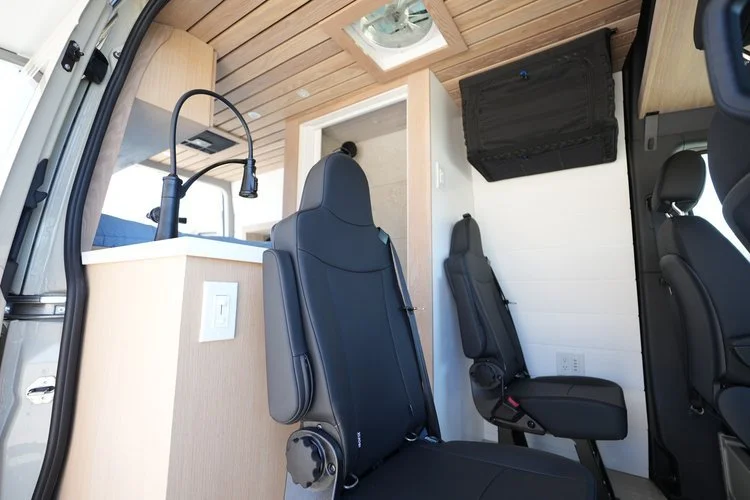

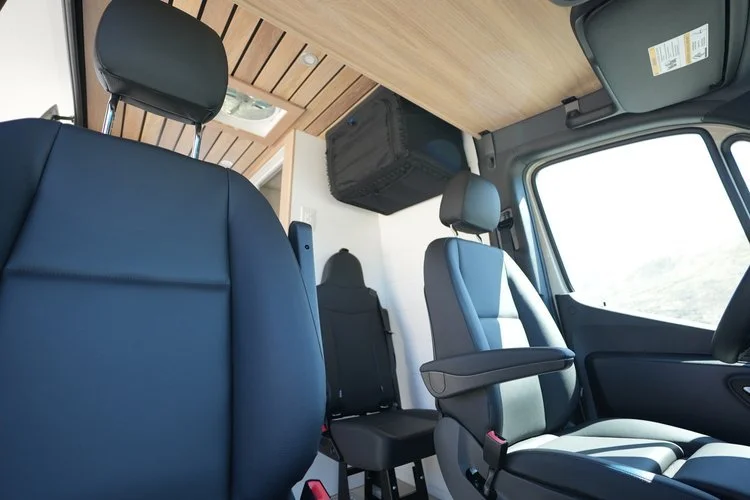

We installed two Van Equipped seats that are crash- and safety-tested and mounted on L-track, making them fully removable and flexible for different travel needs.

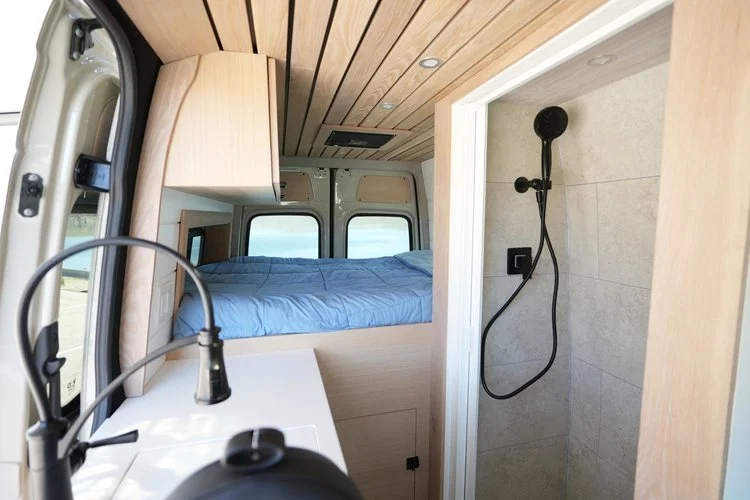

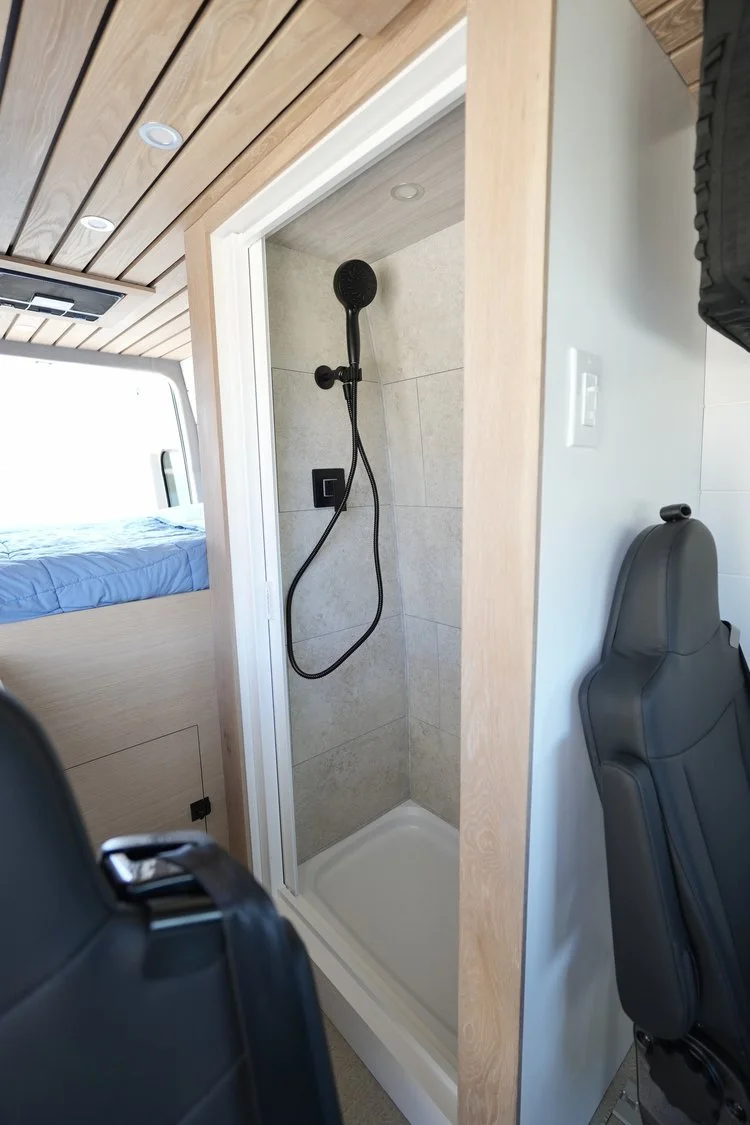

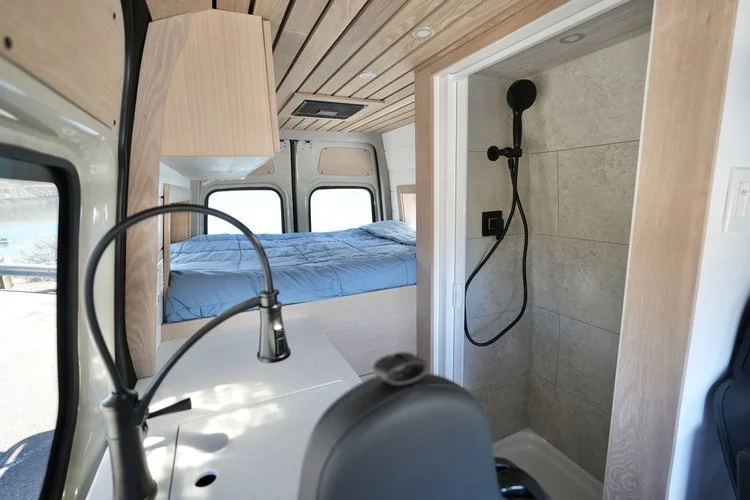

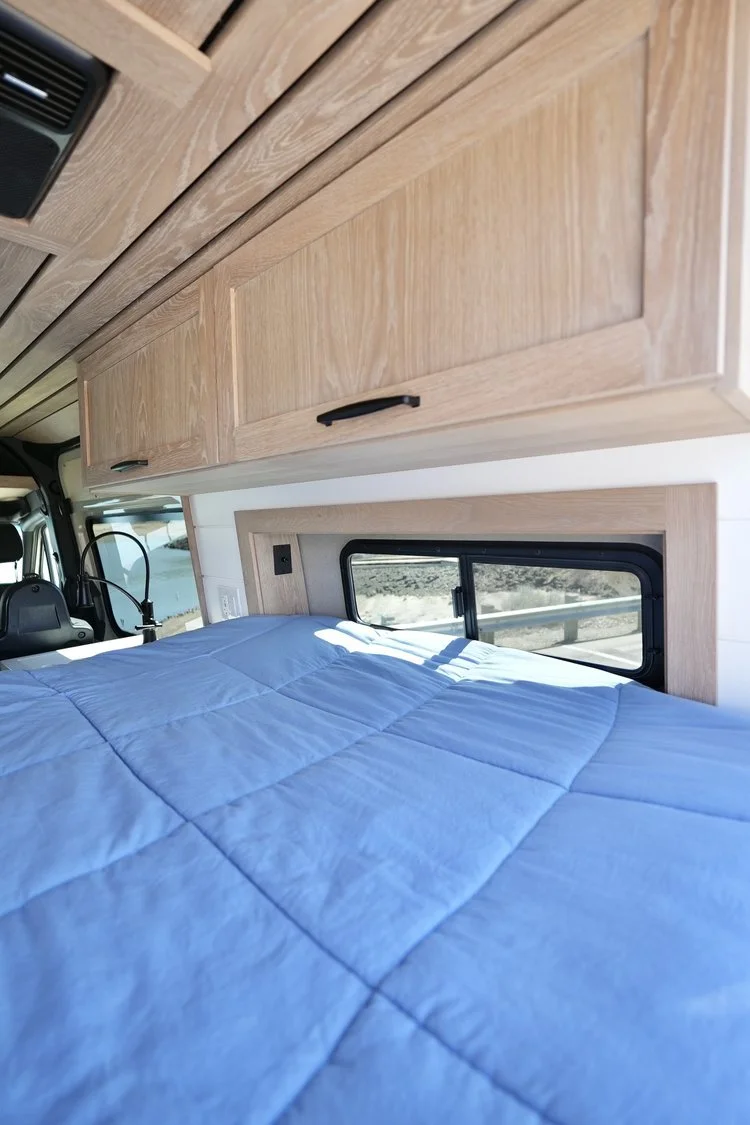

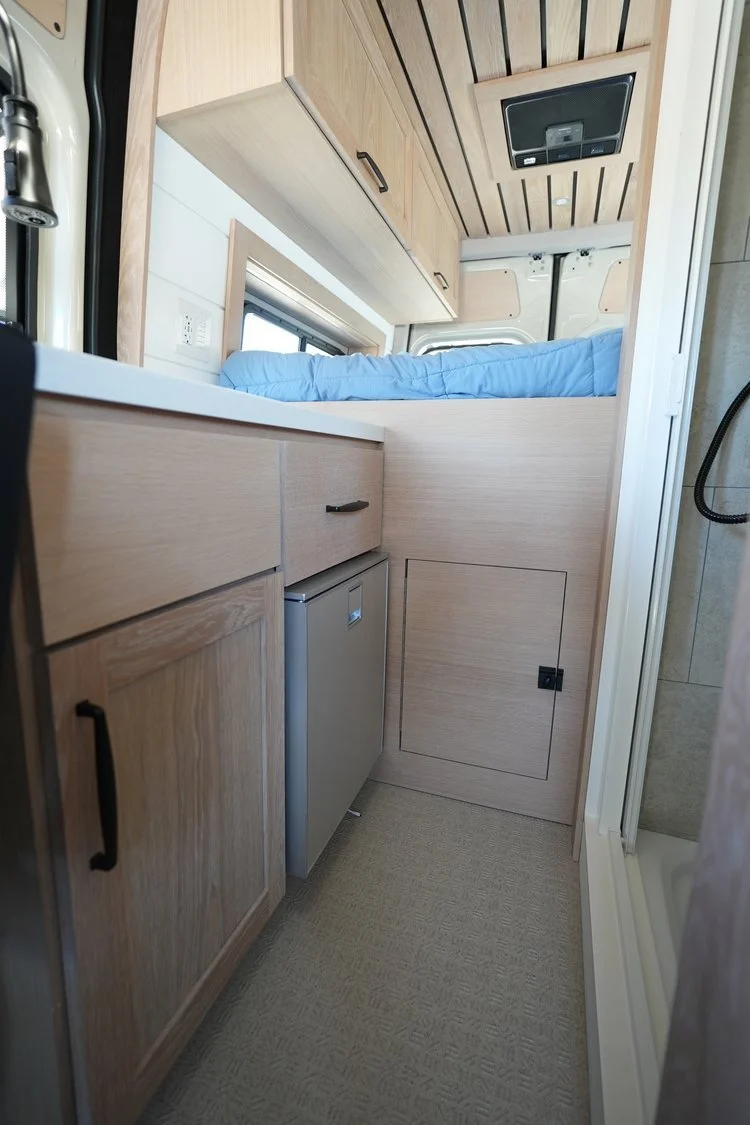

This van features custom white oak cabinetry throughout, along with a wet bath and a functional galley kitchen. For families needing even more sleeping space, this layout would also pair perfectly with a rooftop tent.
looking for OUR floor plans?
Get the Van Layout Guide! You’ll receive all the dimensions for each one of the floor plans we created. You’ll also get instant access to our private Facebook community where you can connect with us and hundreds of others who are doing their own DIY van build.
PHOTOS
FEATURES
810ah Battle Born Batteries
3000 watt Victron Inverter
Victron Cerbo GX Control Panel
TR Smart 60 Alternator Charging

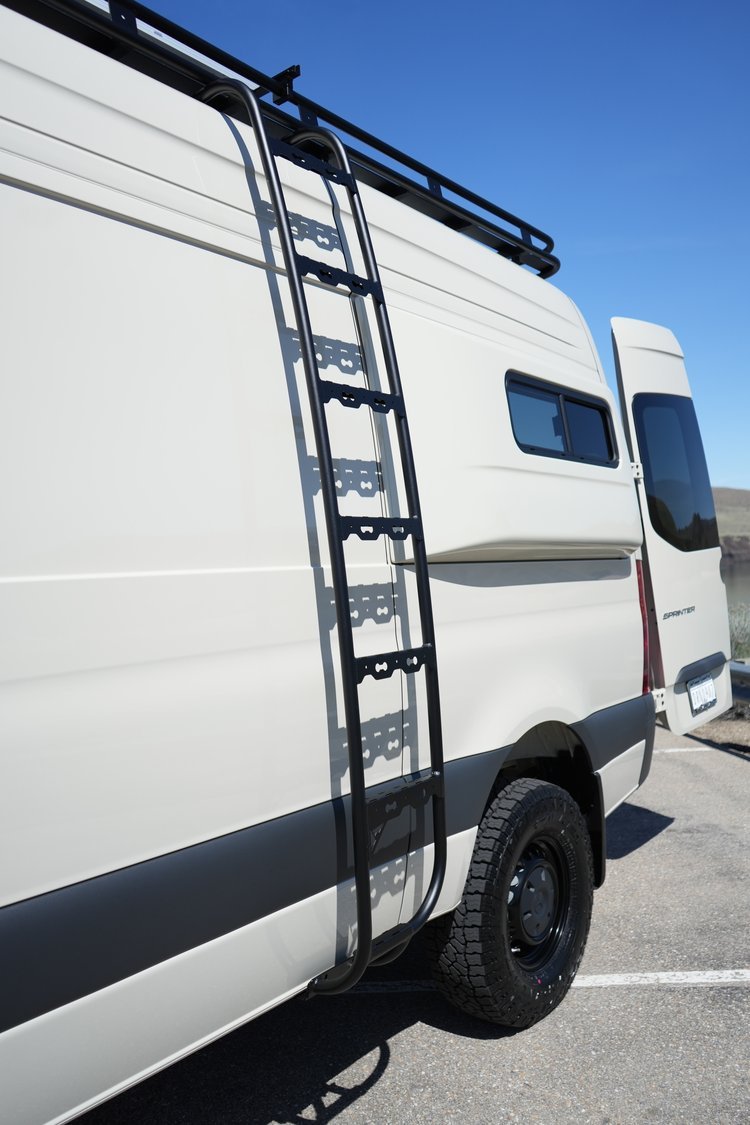

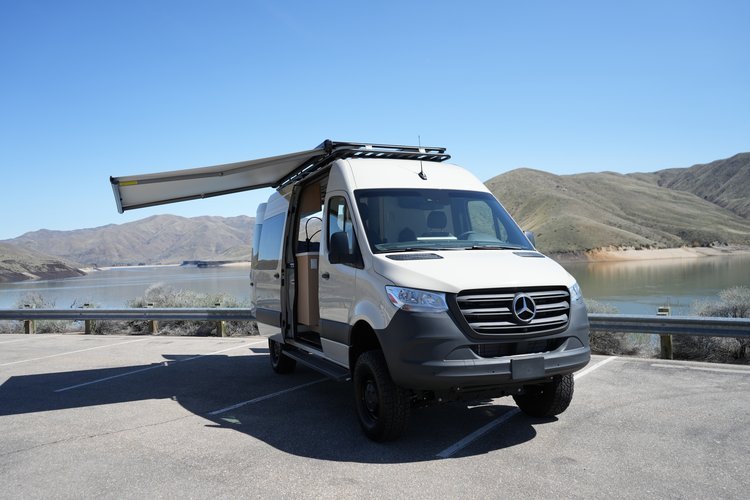

Aluminess Roof Rack and Side Ladder
Dometic 12 volt RTX 2000 Air Conditioner
Espar Diesel 12 volt Heater
Truckbed Liner Treatment on Front & Back Bumpers, and Lower Panels
49 Liter Isotherm Fridge
33 Gallon Fresh Water Tank
15 gallon Grey Water Tank for Shower
11 gallon Grey Water Tank for Sink
2.5 Gallon Water Heater
Window Covers: https://bit.ly/32Esmu6
