The BEST Camper Van Layout for Families

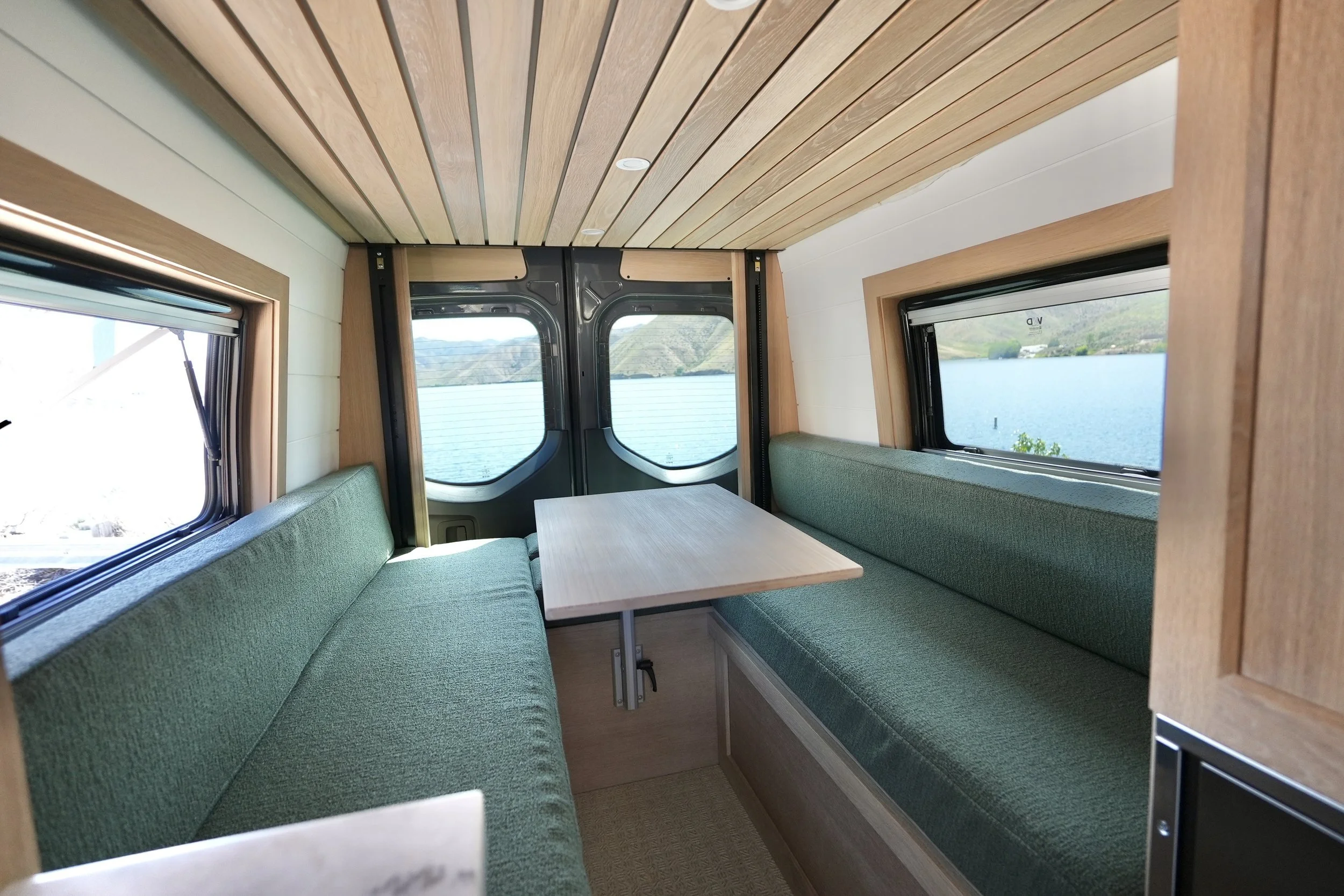

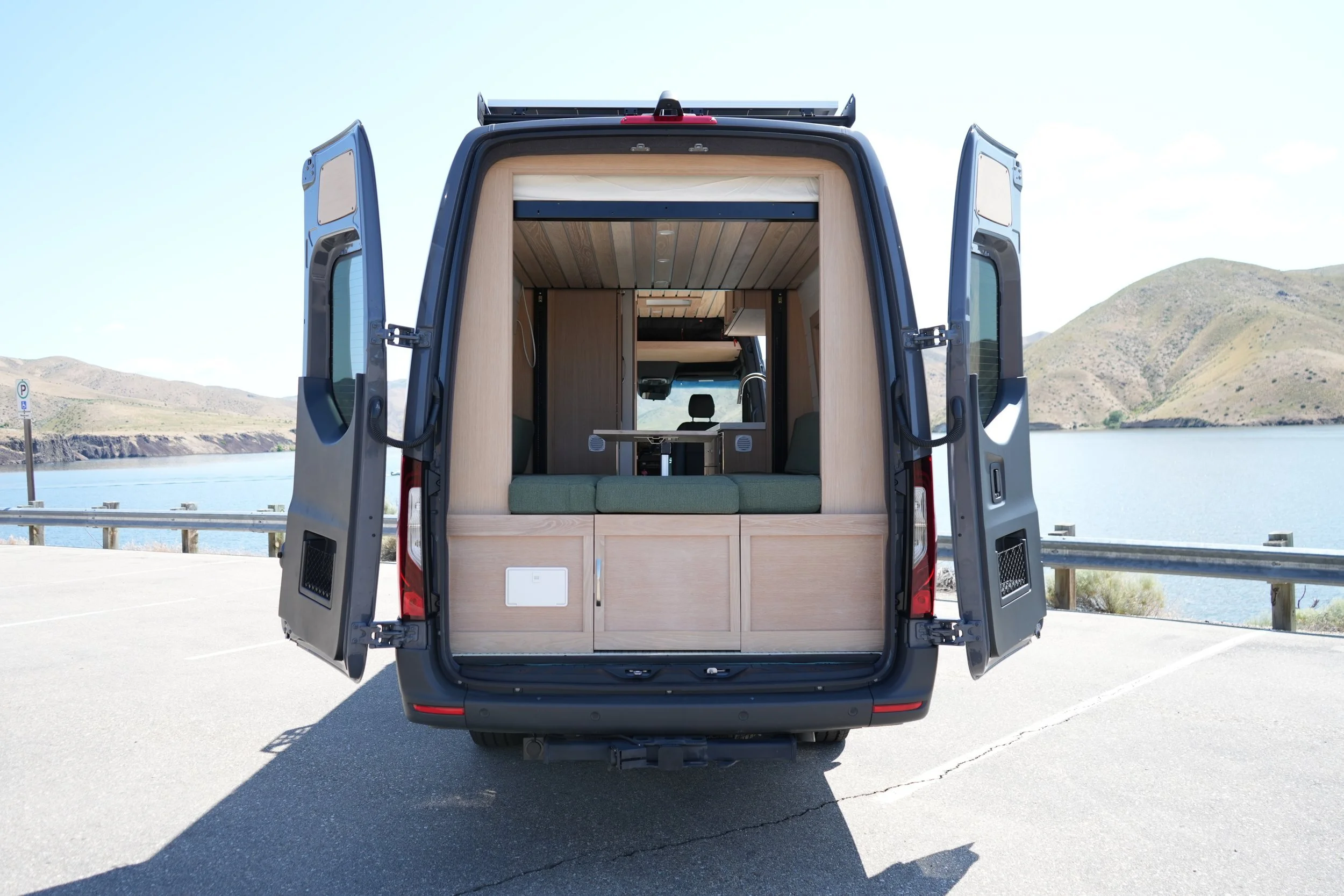

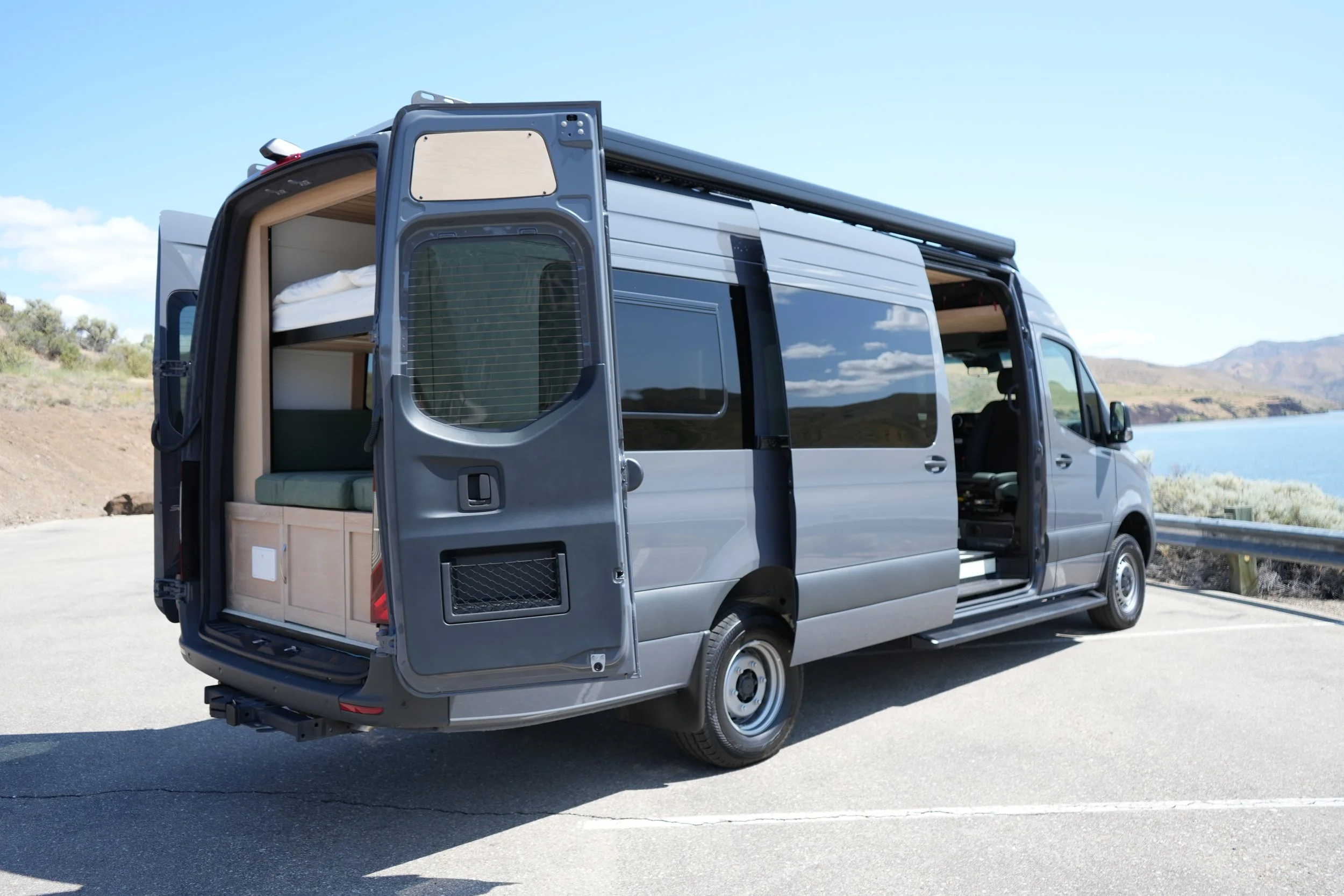

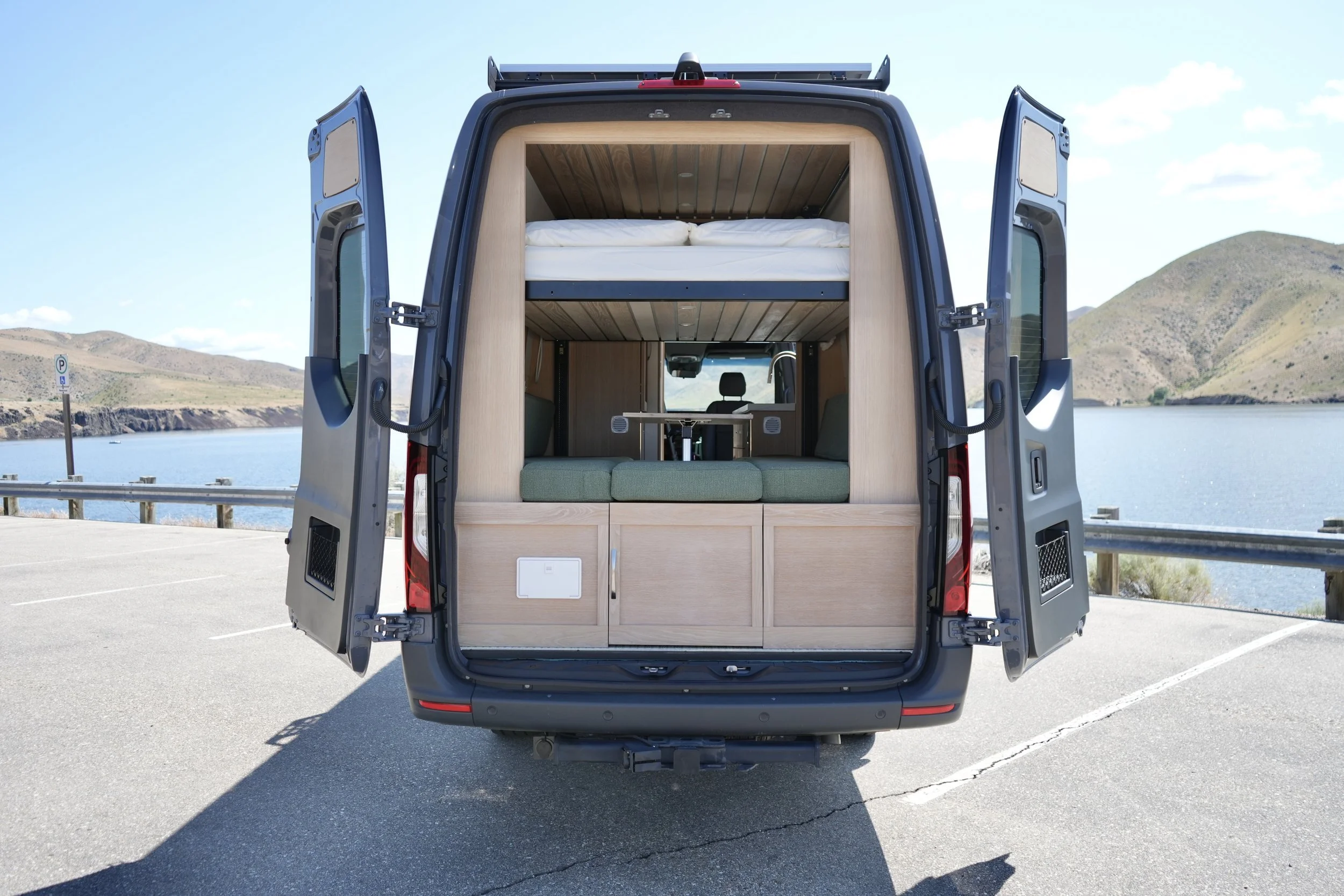

Welcome to Van Build #49 from Custom Crafted Vans! This family-friendly camper van was designed to comfortably seat 4 and sleep 4, making it the perfect setup for parents traveling with kids.
This build features:

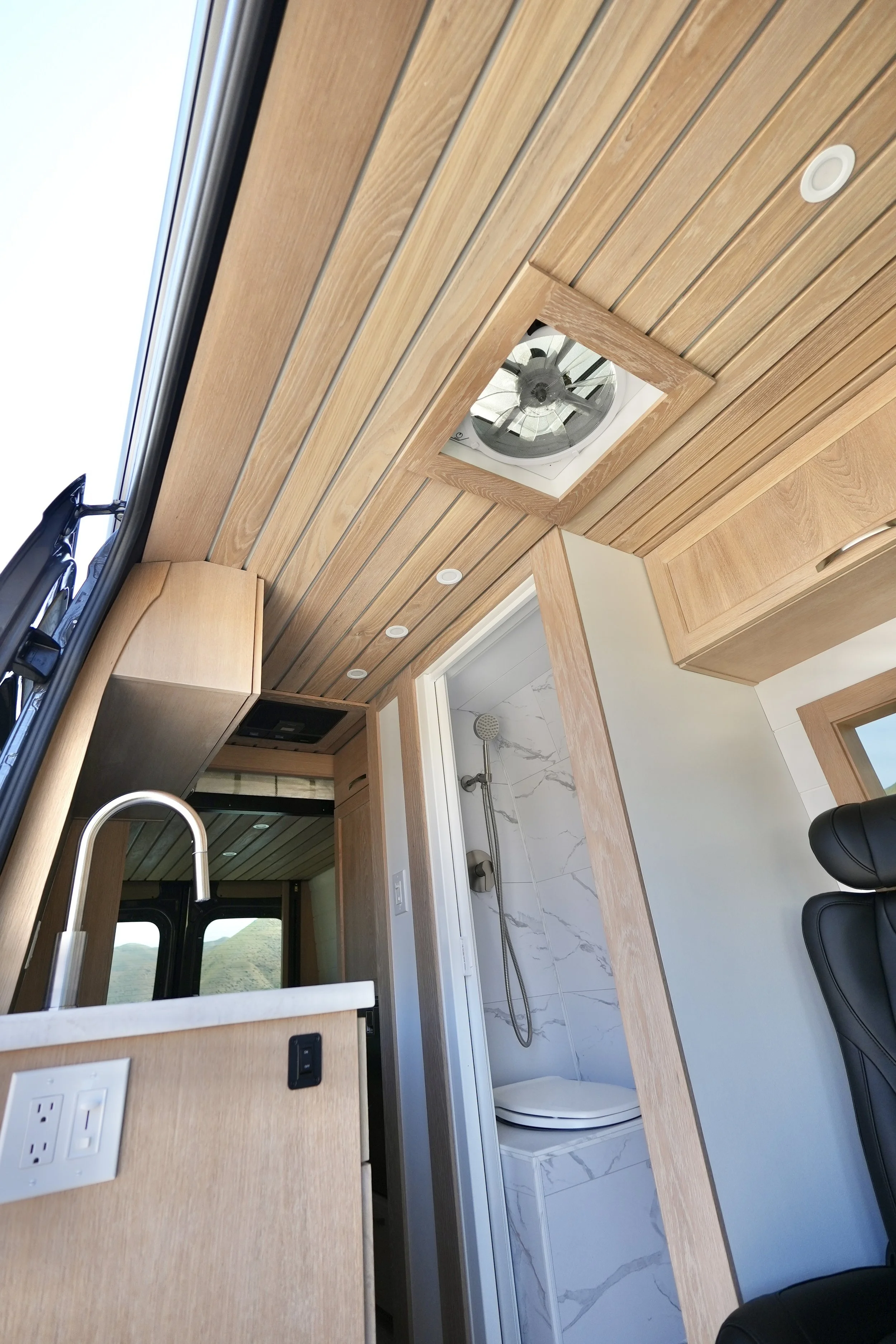

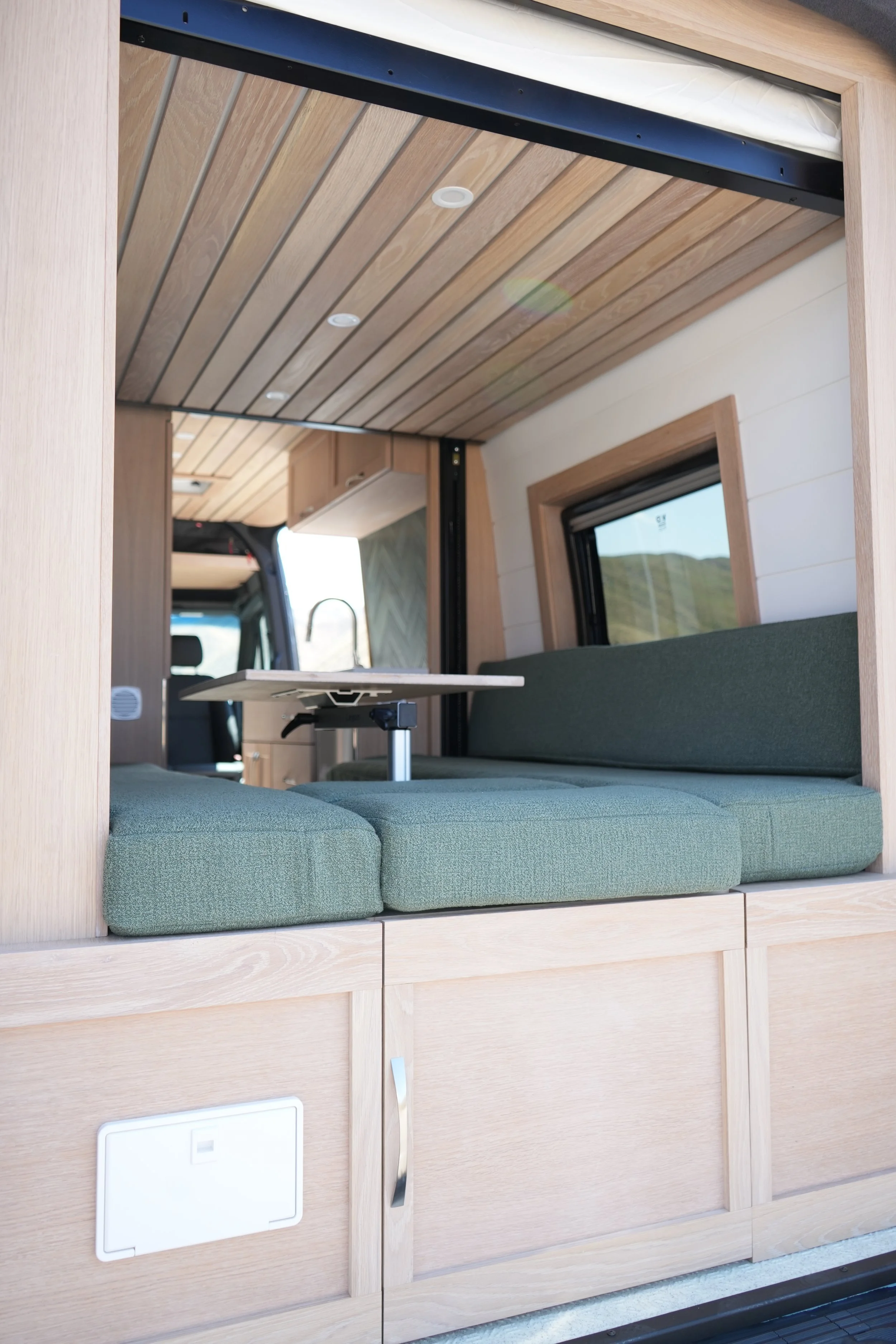

✅ White oak slat ceiling for a warm, modern look

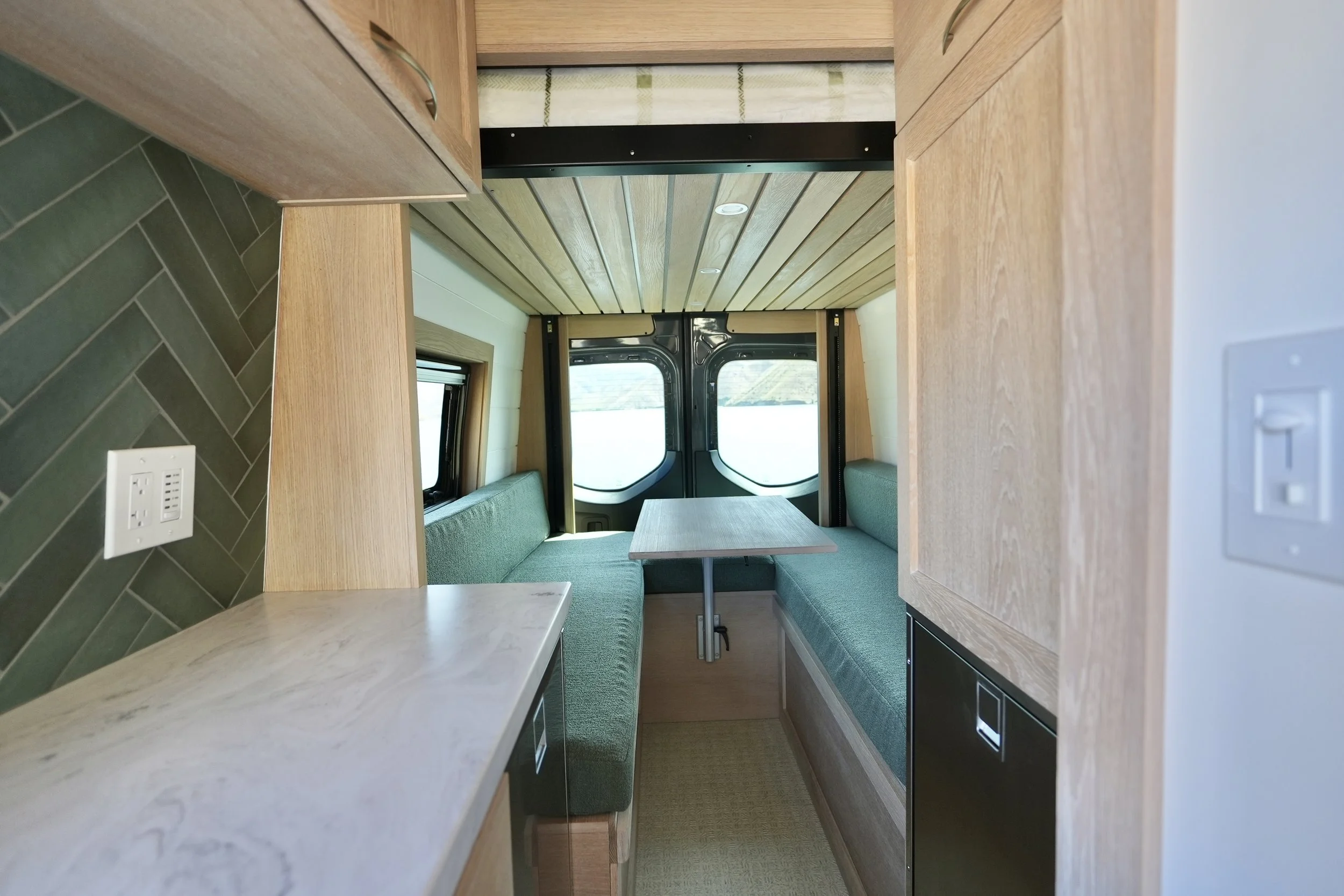

✅ Custom rift sawn white oak cabinetry throughout

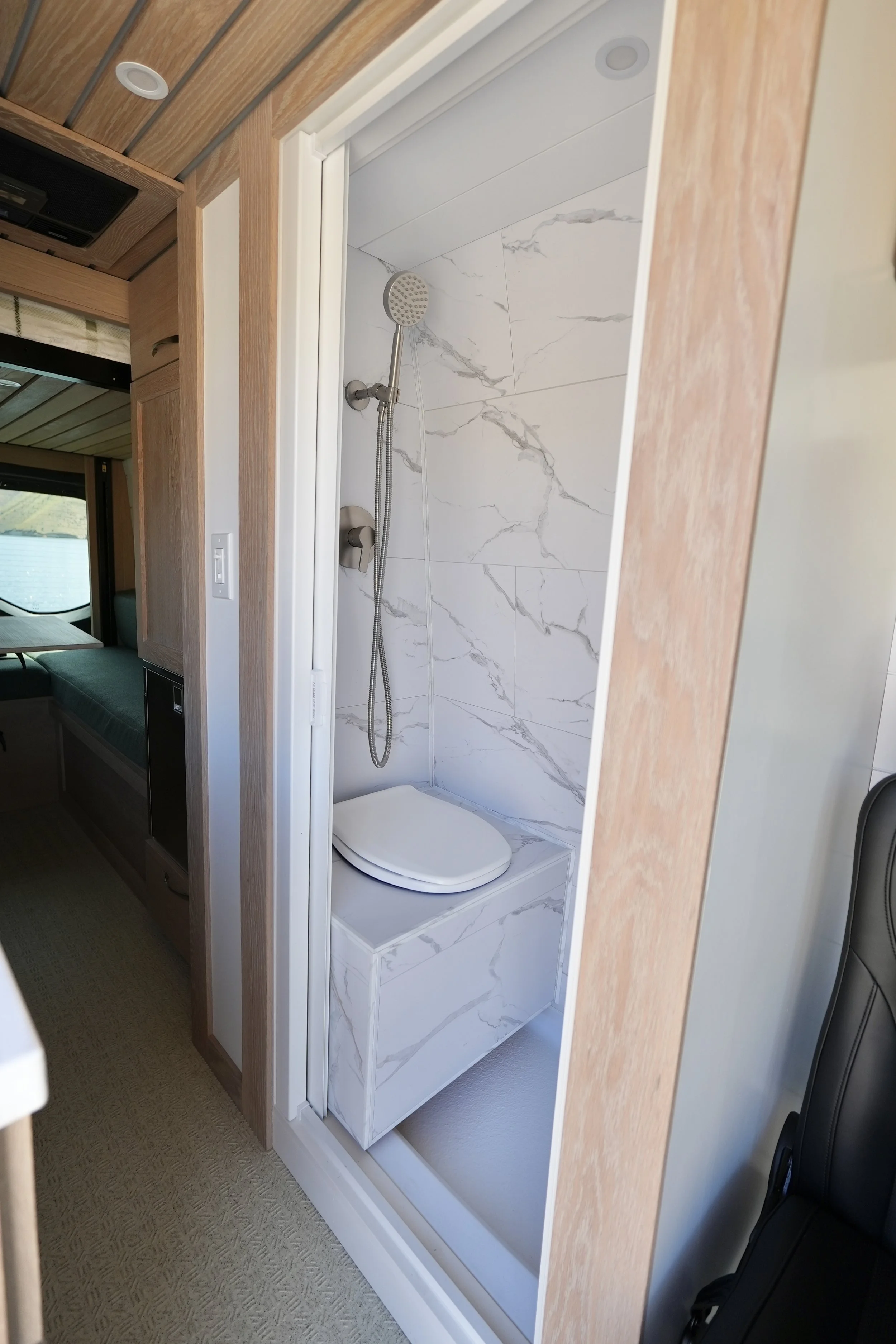

✅ Full bathroom with shower

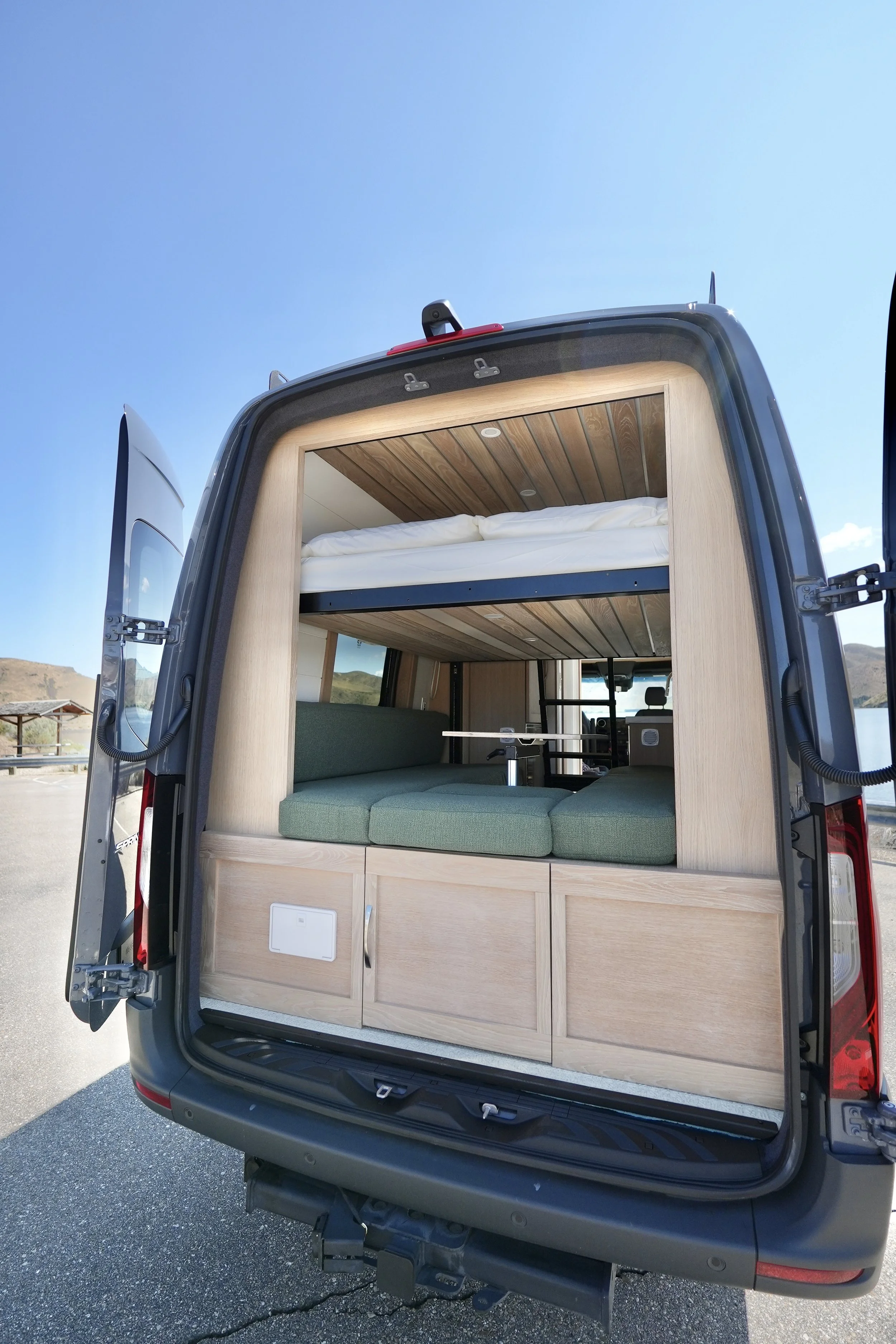

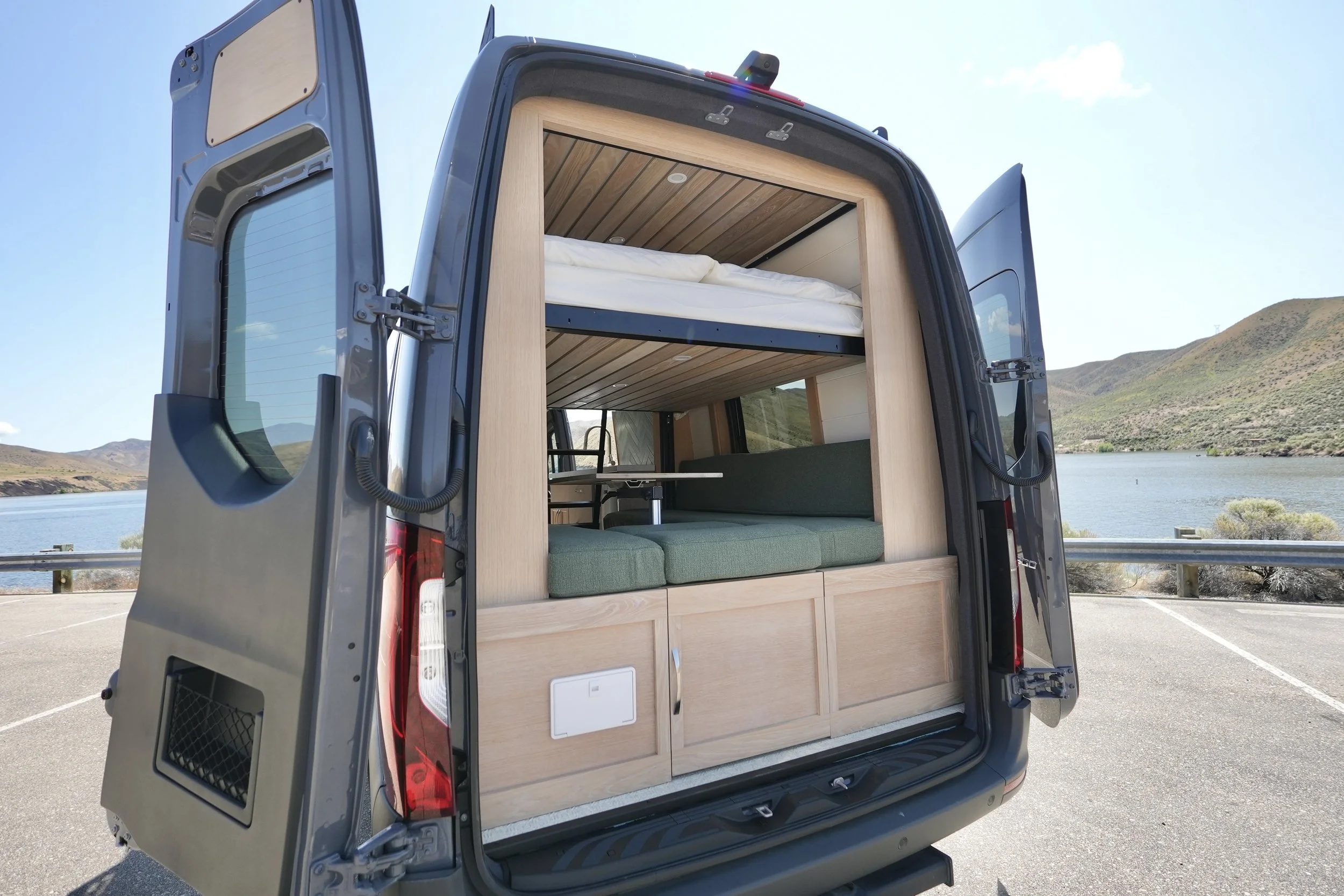

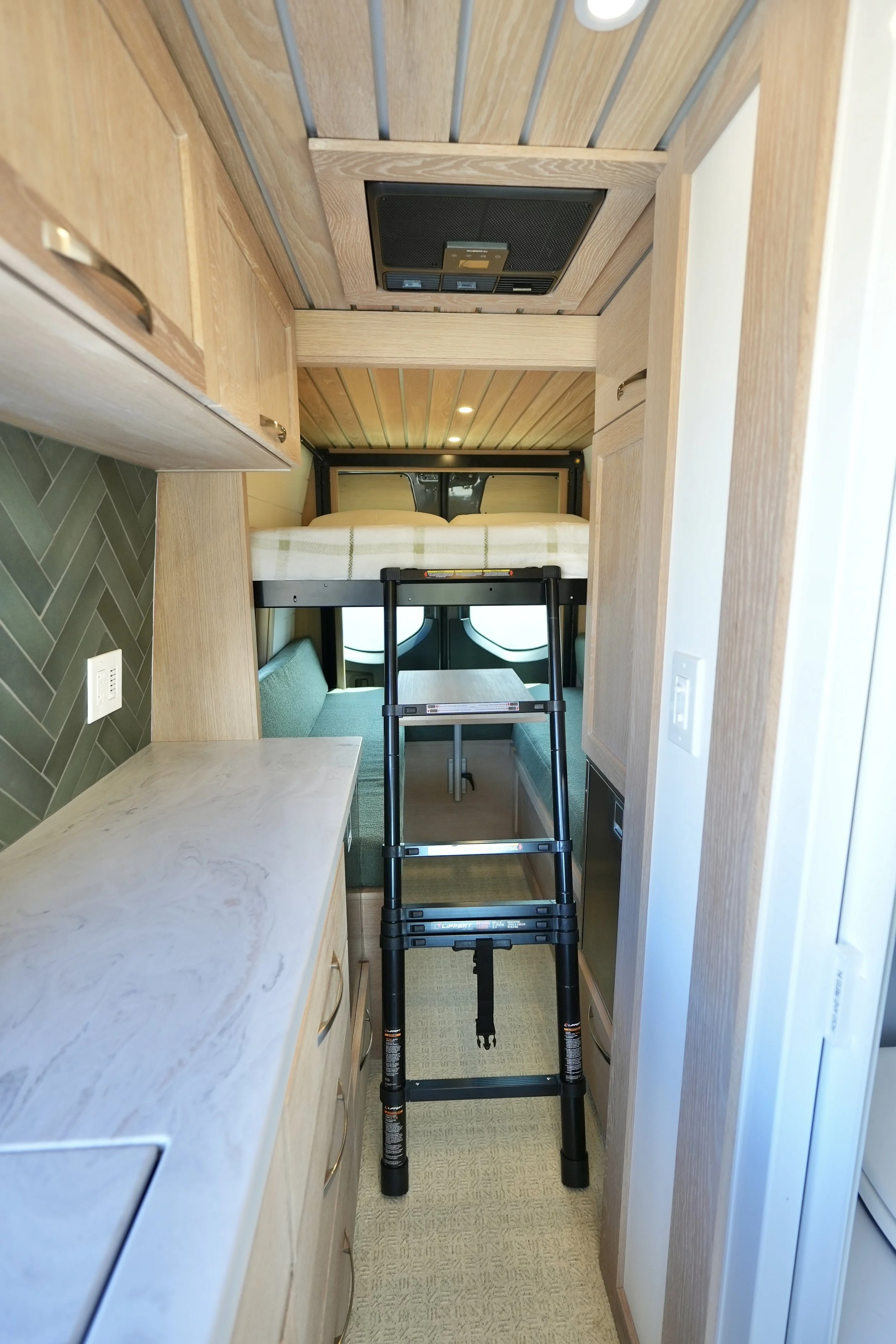

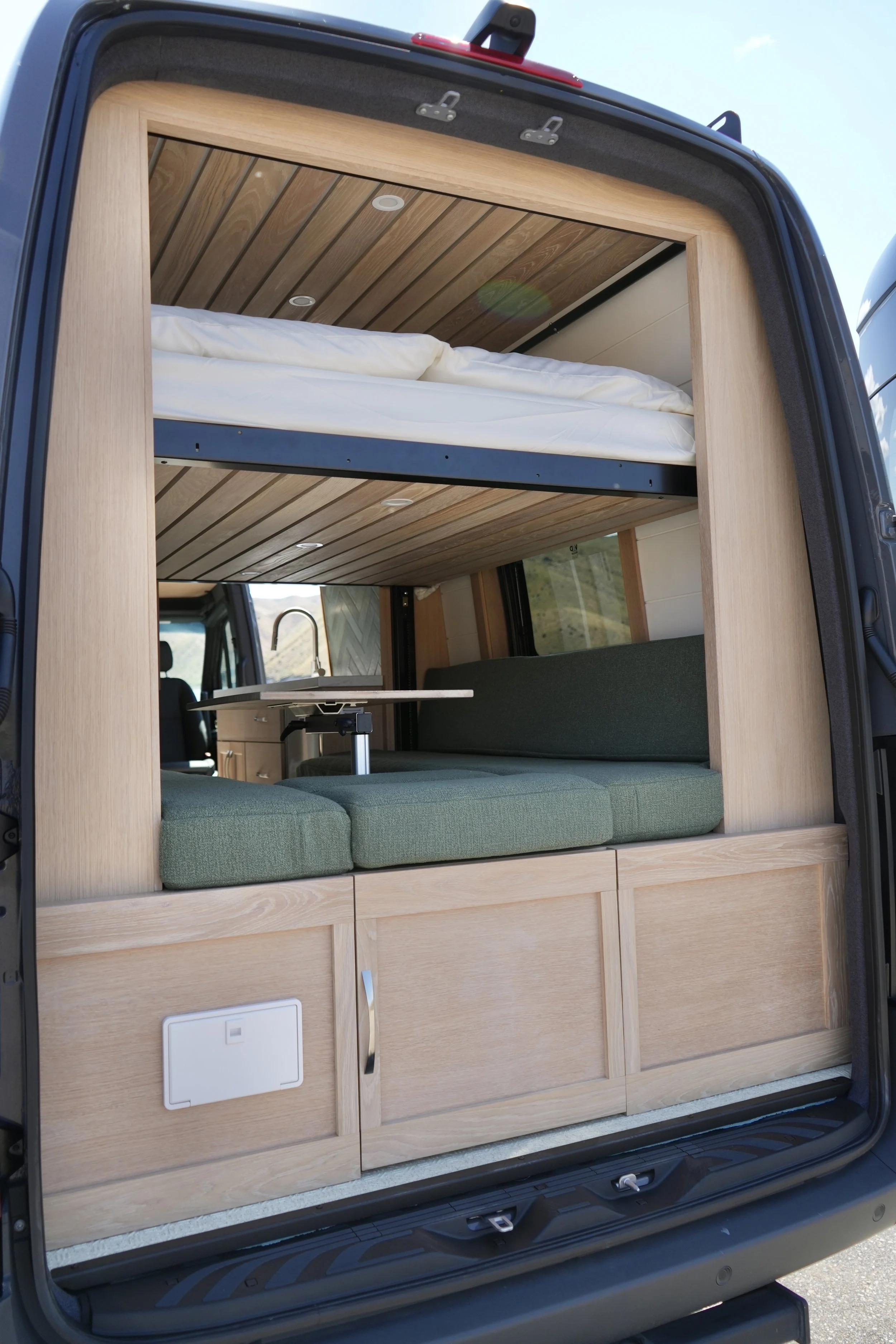

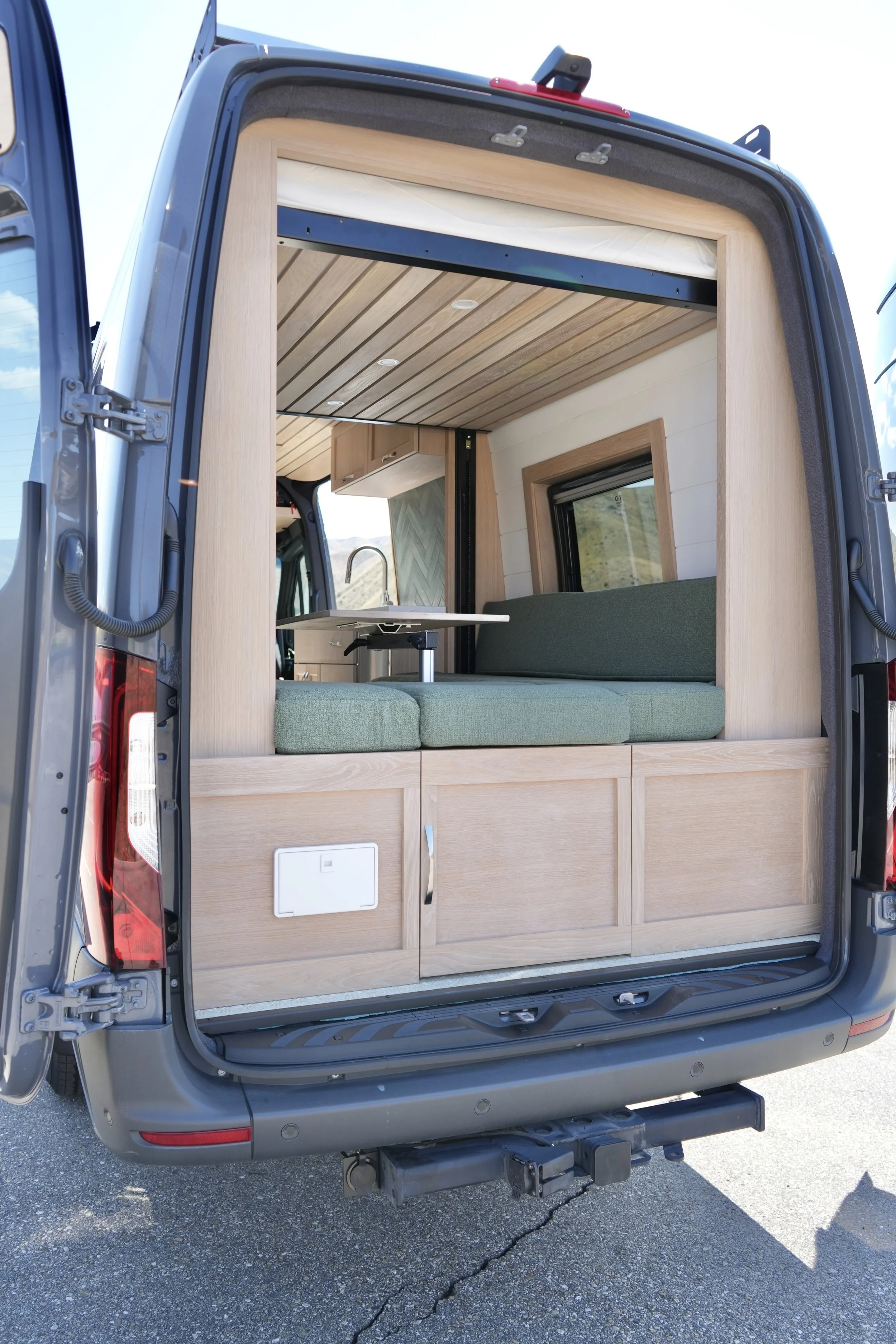

✅ Happijac bed lift system for flexible sleeping space

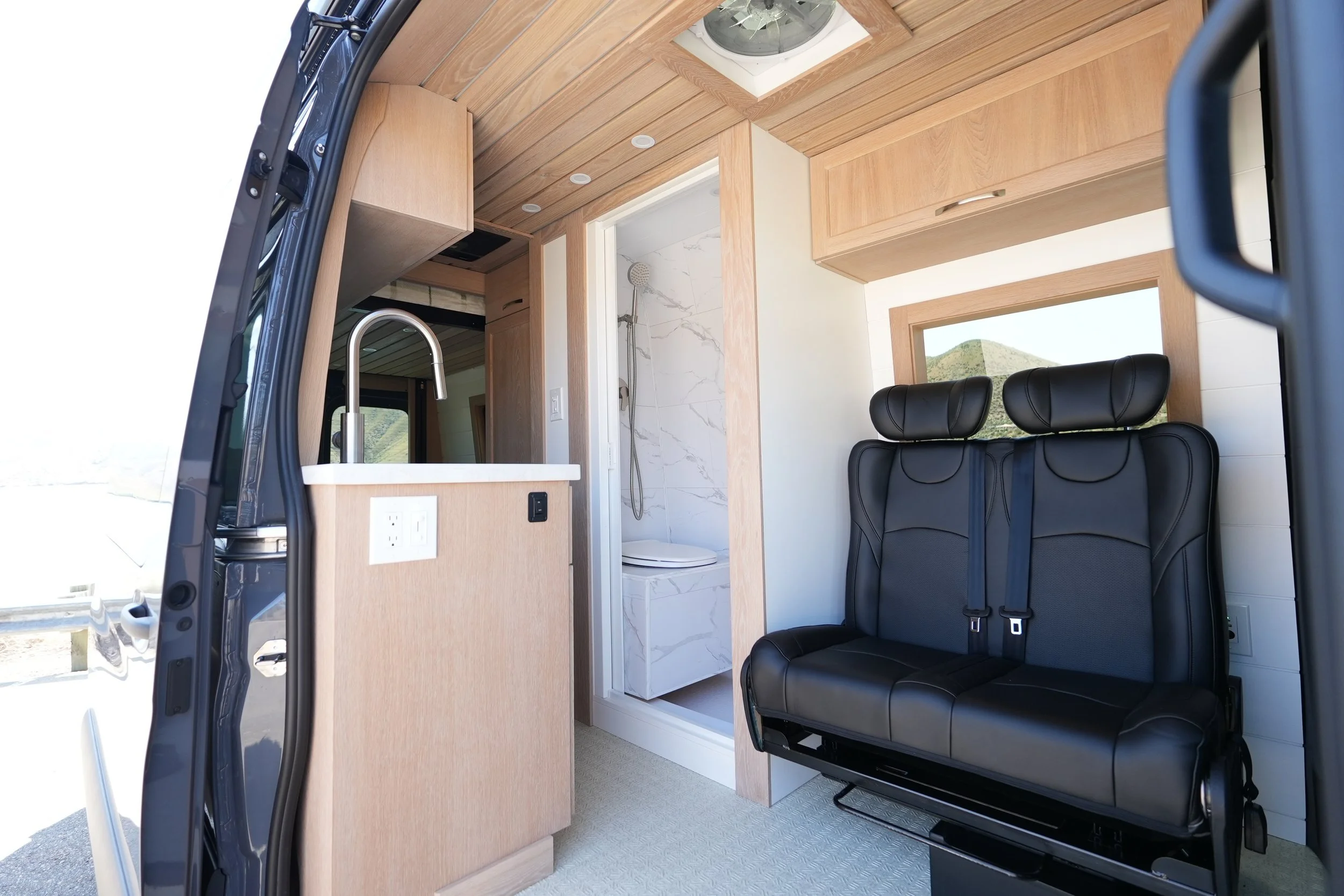

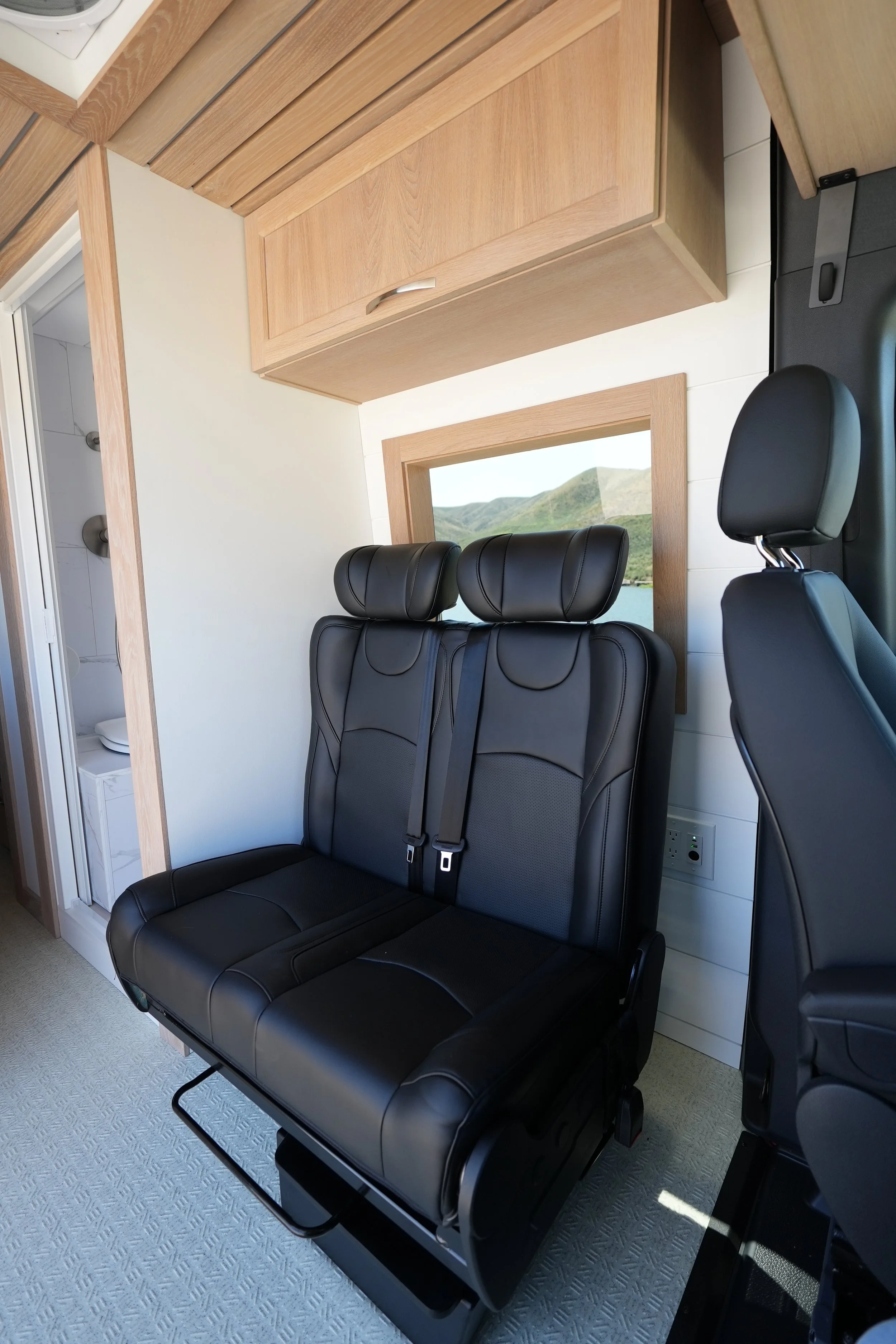

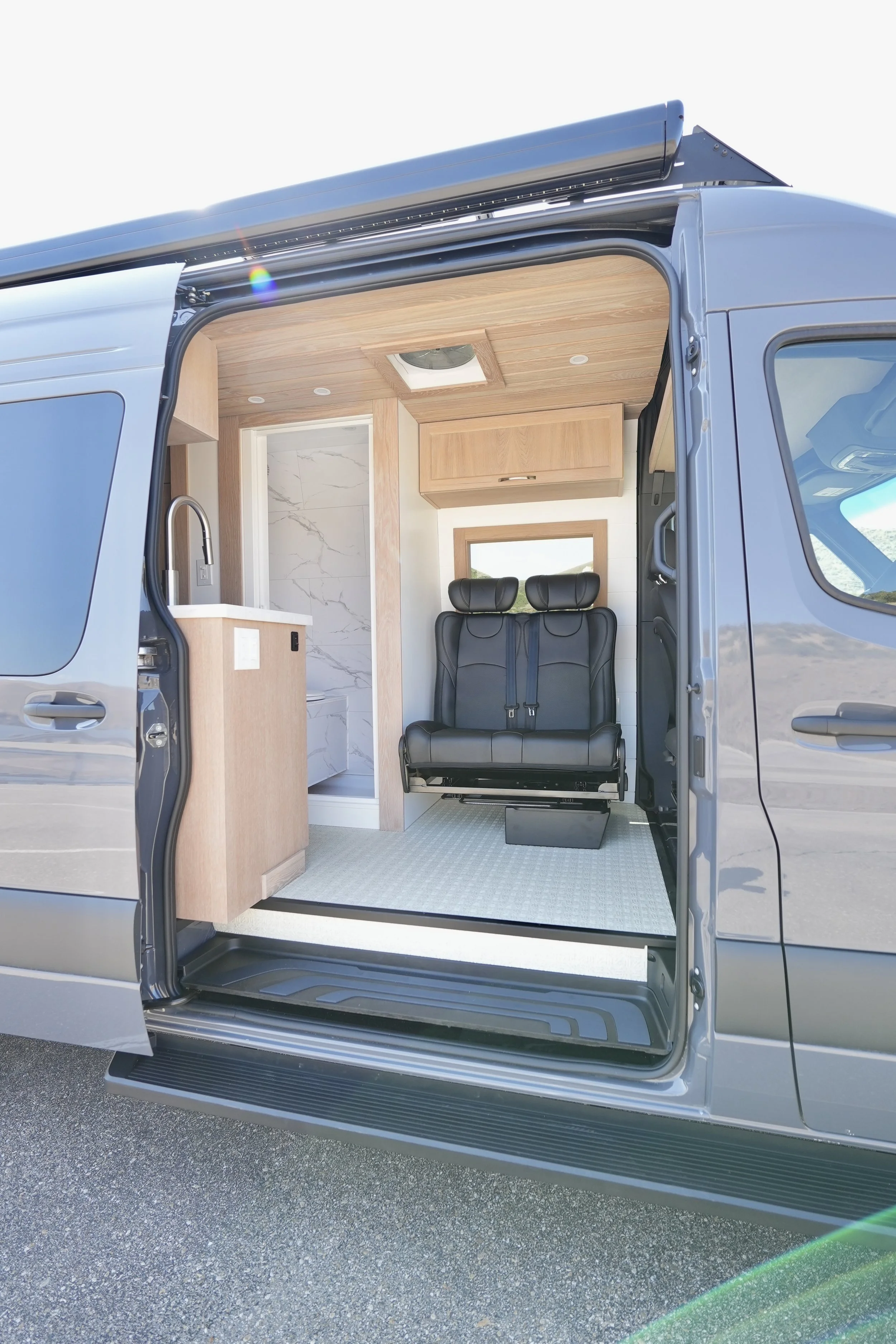

✅ Swivel bench seat to maximize seating and functionality
Every detail was crafted with families in mind. This layout is not only practical but also beautiful, creating a true home on wheels to travel and make memories.
looking for OUR floor plans?
Get the Van Layout Guide! You’ll receive all the dimensions for each one of the floor plans we created. You’ll also get instant access to our private Facebook community where you can connect with us and hundreds of others who are doing their own DIY van build.
PHOTOS
FEATURES
810ah Battle Born Batteries
3000 watt Victron Inverter
Victron Cerbo GX Control Panel
TR Smart 60 Alternator Charging
Dometic 12 volt RTX 2000 Air Conditioner
Espar Diesel 12 volt Heater
Truckbed Liner Treatment on Front & Back Bumpers, and Lower Panels

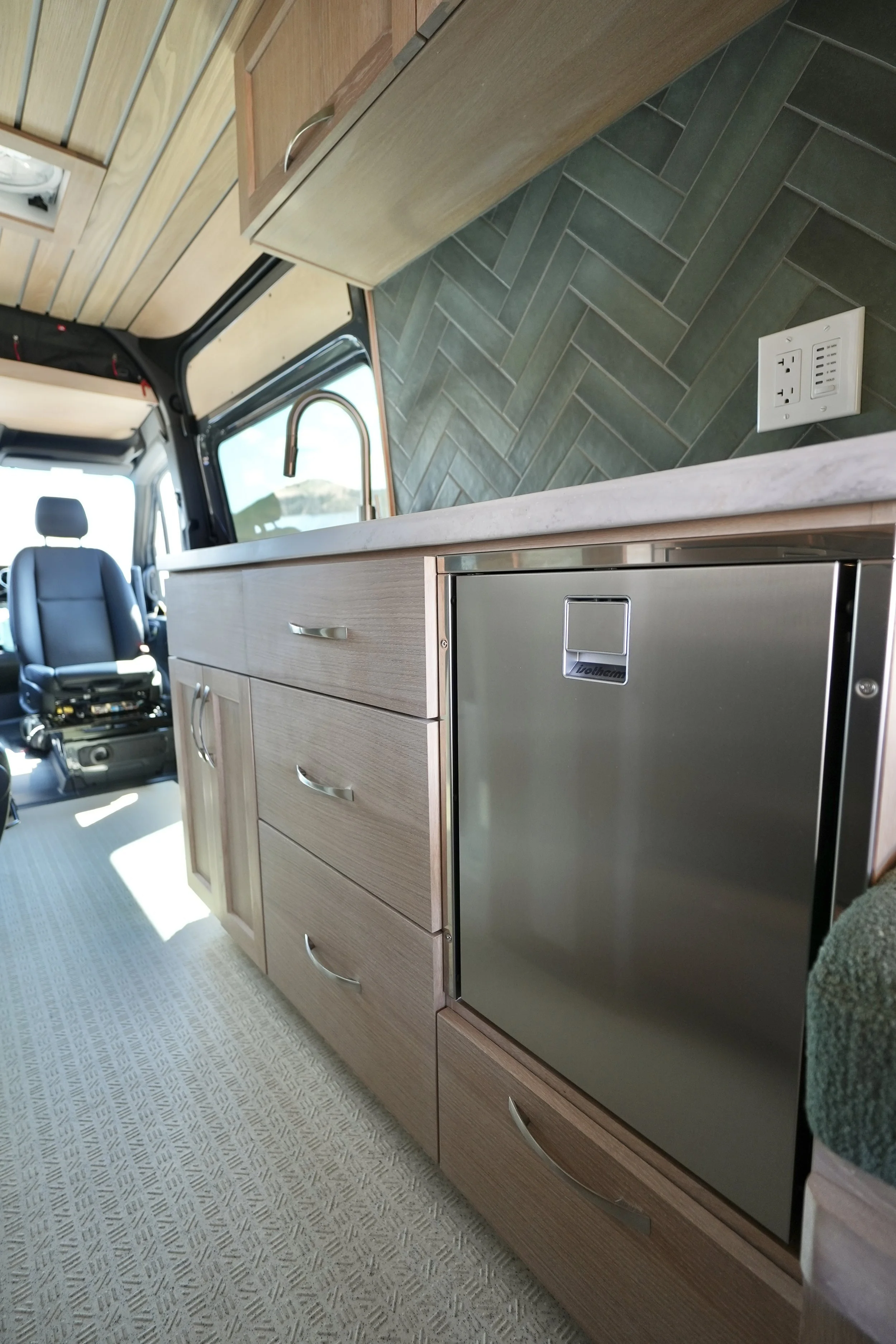

49 Liter Isotherm Fridge
55 Liter Isotherm Freezer
33 Gallon Fresh Water Tank
15 gallon Grey Water Tank for Shower
11 gallon Grey Water Tank for Sink
2.5 Gallon Water Heater
Window Covers: https://bit.ly/32Esmu6
COMPONENTS
This self-contained truck roof parking cooler is battery-operated with up to 12 hours of running time. It is highly efficient with only 19A consumption in Eco mode.
The Dometic Coolair RTX 2000 creates pleasant temperatures for up to twelve hours before the battery monitor gives advance warning and finally cuts off the power supply to keep the engine ready to start. The even more powerful RTX 2000 uses its ample capacity to face hot temperatures in the truck cabin for up to twelve hours. Added to this, the CoolAir is amazingly quiet in operation. The two-cylinder compressor works unnoticeably, leaving the driver to rest perfectly to enjoy all the comforts of the parking cooler: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner.
TECH SPECS
15 1/2" x 19" approximate internal opening
Up to 12 hours of running time
Very quiet (<70dBa)
Turbo cooling operating mode for quick cooling
All A/C components integrated into the roof unit
ADR compliant
High cooling capacity: 2000 W (6,824 BTU)
Highly efficient: only 19A power consumption in Eco mode
Suitable for ambient temperatures of 41 °F to 126 °F
INCLUDED
4AWG Wiring Kit (required for installation)
Install Hardware kit (required for installation)
For complete dimensions and product information please view the Dometic Guide
