FAMILY VAN TOUR | Bed Lift to Sleep 4!
We just wrapped up a van for us! We decided to use our original Family Van layout now that our boys are getting older. We know this van will be able to grow with us for years to come. This is built in a 170” extended 3500 Mercedes Sprinter Van.
The rear area features a convertible table/bed area with the Happijac bed lift system. During the day, the top bed can go all the way to the ceiling so you can have your table/seating space underneath. At night, you can push a button and drop the upper bed down and the area underneath converts to an almost king size bed.

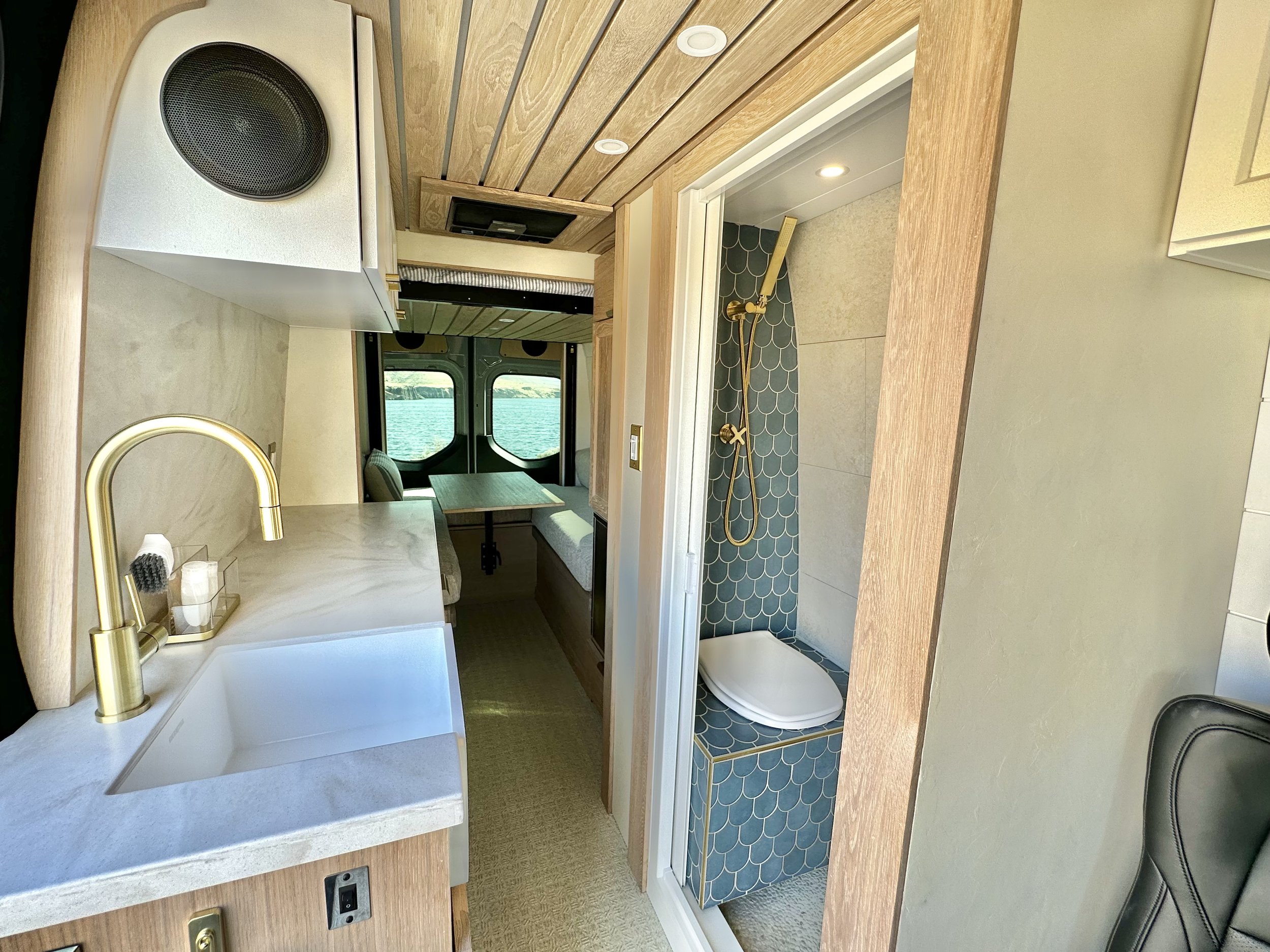

Other features of this van include a swivel base for the extra bench seat, a full wet bath with a tile feature wall, a fridge and a freezer, and gorgeous white oak finishes throughout!
If you are looking for the swivel base or seat we use, please find the details by clicking here and shop at vanbuildshop.com
looking for this floor plan?
Get the Van Layout Guide! You’ll receive all the dimensions for each one of the floor plans we created. You’ll also get instant access to our private Facebook community where you can connect with us and hundreds of others who are doing their own DIY van build.
PHOTOS
FEATURES
540ah Battle Born Batteries: http://bit.ly/3r5Sq8x
3000 watt Victron Inverter
Victron Cerbo GX Control Panel
TR Smart 60 Alternator Charging
Aluminess Roof Rack and Side Ladder
Dometic 12 volt RTX 2000 Air Conditioner
Espar Diesel 12 volt Heater
7500 lbs Rear Leaf Spring from Van Compass
Truckbed Liner Treatment on Front & Back Bumpers, and Lower Panels
49 Liter Isotherm Fridge
55 Liter Isotherm Freezer
33 Gallon Fresh Water Tank
15 gallon Grey Water Tank for Shower
11 gallon Grey Water Tank for Sink
5 gallon tank for Toilet
2.5 Gallon Water Heater
Window Covers: https://bit.ly/32Esmu6
COMPONENTS
This self-contained truck roof parking cooler is battery-operated with up to 12 hours of running time. It is highly efficient with only 19A consumption in Eco mode.
The Dometic Coolair RTX 2000 creates pleasant temperatures for up to twelve hours before the battery monitor gives advance warning and finally cuts off the power supply to keep the engine ready to start. The even more powerful RTX 2000 uses its ample capacity to face hot temperatures in the truck cabin for up to twelve hours. Added to this, the CoolAir is amazingly quiet in operation. The two-cylinder compressor works unnoticeably, leaving the driver to rest perfectly to enjoy all the comforts of the parking cooler: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner.
TECH SPECS
15 1/2" x 19" approximate internal opening
Up to 12 hours of running time
Very quiet (<70dBa)
Turbo cooling operating mode for quick cooling
All A/C components integrated into the roof unit
ADR compliant
High cooling capacity: 2000 W (6,824 BTU)
Highly efficient: only 19A power consumption in Eco mode
Suitable for ambient temperatures of 41 °F to 126 °F
INCLUDED
4AWG Wiring Kit (required for installation)
Install Hardware kit (required for installation)
For complete dimensions and product information please view the Dometic Guide
